6000m3/H 26 Inch Cutter Suction Dredger Ship For High Capacity Dredging

Name: 6000m3H 26 Inch Cutter Suction Dredger Ship For High Capacity Dredging
Brand: JIN MENG
Price: 800000 USD

Buy cheap 6000m3/H 26 Inch Cutter Suction Dredger Ship For High Capacity Dredging product

Brand Name : JIN MENG

Model Number : JMD650

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : $800000-$1400000

Payment Terms : ,T/T

Supply Ability : 10sets/year

Delivery Time : 120days

Packaging Details : Bulk

Name : 26inch Cutter suction dredger ship

Type : Heavy cutter suction dredger

Cutter Power : 650 kW

Hull Material : Marine Steel

Discharge Distance : 3000 meters

Dredging Depth : 20-30 meters

Water flow : 6000 cubic meters per hour

Size : Heavy Type

Suction Pipe Diameter : 700mm

Contact Now

6000m³/H 26 Inch Cutter Suction Dredger Ship For High Capacity Dredging

Product Specifications

Attribute	Value
Name	26inch Cutter suction dredger ship
Type	Heavy cutter suction dredger
Cutter Power	650 kW
Hull Material	Marine Steel
Discharge Distance	3000 meters
Dredging Depth	20-30 meters
Water flow	6000 cubic meters per hour
Size	Heavy Type
Suction Pipe Diameter	700mm

Product Overview

The 26-inch Cutter Suction Dredger Ship is designed for high-capacity dredging operations in various water environments. Manufactured by Weifang Jin Meng Dredger Co., Ltd., this heavy-duty equipment is built for efficiency and durability.

Technical Specifications

Component	Specification
Dredging Pump	Dia. Discharge pipe: 650mm Head: 65m Max. Working capacity: 1100m³/h
Diesel Engine	1885KW (Mitsubishi)
Hydraulic Auxiliary engine	522KW (Cummins)
Emergency Generator	30KW (WEICHAI)
Total power	2437KW
Hull Dimension	50m × 8.8m × 2.5m
Cutter Head	Crown-like Φ2200mm, Power: 400KW

Key Features

Designed for dredging operation of soil types II-IV (fine sand, clay, silt, coarse sand)
Five-pontoon hull design for stability and easy transportation
Equipped with horizontal shifting devices and cutter ladder lifting devices
Suitable for river dredging, desilting, and reclamation projects
Built to CCS standards with high-quality marine steel and anti-corrosion paint

Applications

This heavy-duty cutter suction dredger is ideal for:

River dredging and desilting
Reclamation projects for channels and land
Sand dredging in rivers, salty water, or peaceful sea environments

Product Images

6000m3/H 26 Inch Cutter Suction Dredger Ship For High Capacity Dredging

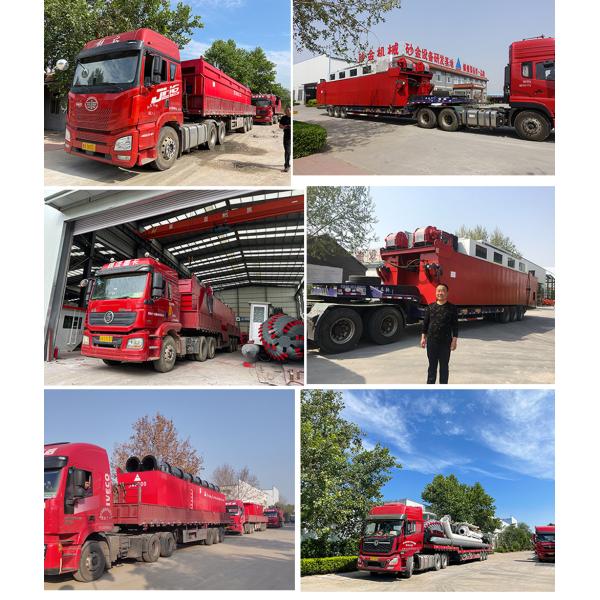

Welcome to visit our factory for more details about our Heavy Type cutter suction dredger ships
